Ψυγεία IC - Heatsink black finished L=25,4mm 12,6K/W for TO220

Κωδικός: 7800

HS-135-25 PDF

HS-135-25

Τιμή χωρίς ΦΠΑ:  0.83 €
Αξία ΦΠΑ:  0.20 €
Τελική με ΦΠΑ:  1.03 €
Ποσότητα:
* Αποστολή σε 2-5 εργάσιμες ημέρες.
Specifications
Manufacturer STONECOLD
Heatsink type extruded
Application TO220
Colour black
Length 25.4mm
Thermal resistance 12.6K/W
Material aluminium
Material finishing anodized
Mounting soldered, screwed

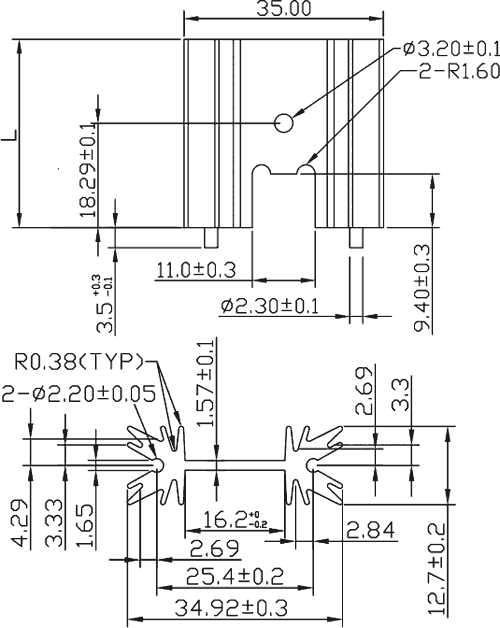

Dimensions  VIEW

Διαθεσιμότητα: Με παραγγελία
