Ψυγεία IC - Heatsink black finished 40K/W with threaded holes TO220

Κωδικός: 7792

HS-112-25 PDF

HS-112-25

Τιμή χωρίς ΦΠΑ:  0.84 €
Αξία ΦΠΑ:  0.20 €
Τελική με ΦΠΑ:  1.04 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer STONECOLD
Heatsink type extruded
Application TO220
Colour black
Length 25.4mm
Width 10.4mm
Height 6.5mm
Thermal resistance 40K/W
Material aluminium
Material finishing anodized
Mounting M2.5x7 hole for strip fastening, screwed

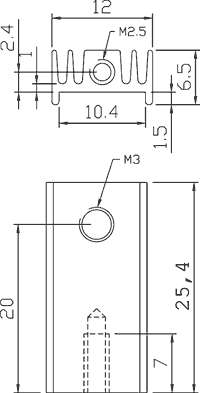

Dimensions  VIEW

Διαθεσιμότητα: Αμεσα
