Ασφαλειοθήκη - Fuse holder tube fuses 6 3x32mm 10A 250V panel mounting

Κωδικός: 14817

R3-38 PDF

R3-38

Τιμή χωρίς ΦΠΑ:  0.95 €
Αξία ΦΠΑ:  0.23 €
Τελική με ΦΠΑ:  1.18 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer SCI
Fuse accessories type fuse holder
Fuses application tube fuses
Fuse size 6,3x32mm
Maximum current 10A
Rated voltage 250V AC
Mounting on panel
Flammability rating UL94V-0
Body material polyamide
Leads 4.8x0.5mm connectors
Panel thickness 0.7...2.5mm
Cap type bayonet cap
Body dimensions 18 x 18 x 50mm
Panel cutout  VIEW

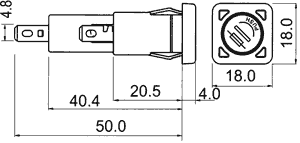

Dimensions  VIEW

Διαθεσιμότητα: Αμεσα
