Ανεμιστήρας DC - Fan DC 45x45x10mm Bearing Vapo 19.9m3/h 32.5dBA 12VDC 1.32W

Κωδικός: 14609

ME45101V1-G99 PDF

ME45101V1-G99

Τιμή χωρίς ΦΠΑ:  4.47 €
Αξία ΦΠΑ:  1.07 €
Τελική με ΦΠΑ:  5.54 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer SUNON
Fan type DC
Fan kind axial
Supply voltage 12V DC
Operating voltage 4.5...13.8V
Fan dimensions 45x45x10mm
Power consumption 1.32W
Rated current 0.11A
Fans efficiency 19.9m3/h
Noise level 32.5dBA
Bearing type Vapo
Signal output F type
Rotational rate/speed 6500 (±15%)rpm
Weight 16g
Current and power consumption tolerance 15%
Min. insulation resistance 10MΩ
Fan material thermoplastic
Enclosure material thermoplastic
Insulation class A
Operating temperature 10...70°C
Leads 3 leads
Static pressure 4.57mm H2O
Flammability rating UL94V-0
Fan motor brushless DC motor
Cable length 300mm
Wire size 26AWG
Additional functions Autorestart

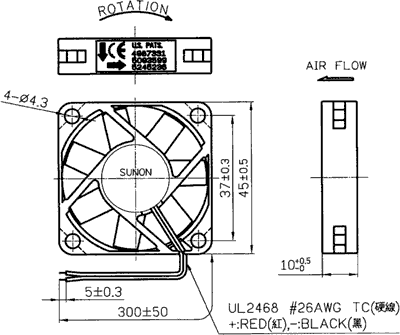

Dimensions  VIEW

Διαθεσιμότητα: Αμεσα
