Fan AC 115VAC Ø254x89mm 1444(±10%)m3/h 68dBA ball bearing - 183.30 EUR : acdcshop.gr


Fan AC - Fan AC 115VAC Ø254x89mm 1444(±10%)m3/h 68dBA ball bearing	Prod code: 15551
PDF	A1259XBL-TC

Click to enlarge Fan AC 115VAC Ø254x89mm 1444(±10%)m3/h 68dBA ball bearing

Price:	183.30 €
VAT:	43.99 €
Final price with tax:	227.29 €
Amount:
Usually shipped within 2-3 business days.

Specifications
Manufacturer	SUNON
Fan type	AC
Fan kind	axial
Supply voltage	115V AC
Fan dimensions	254x89mm
Power consumption	88W
Rated current	830mA
Fans efficiency	1444 (±10%)m³/h
Noise level	68dBA
Bearing type	ball bearing
Rotational rate/speed	2600rpm
Weight	2.4kg
Current and power consumption tolerance	15%
Frequency	50Hz
Min. insulation resistance	500MΩ
Fan material	thermoplastic
Enclosure material	aluminium
Insulation class	B
Operating temperature	10...70°C
Leads	2 leads
Static pressure	19.3mm H₂O
Flammability rating	UL94V-0
Fan motor	Alveolate type motor with running capacitor
Cable length	320mm
Wire size	20AWG

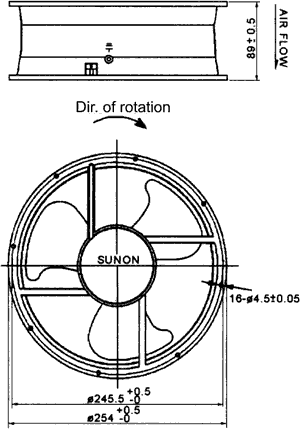

Dimensions	VIEW

Availability: With order
