Ανεμιστήρας AC - Fan 80x80x38;ball bearing;AC230V;46,35m3/h;34,3dBA

Κωδικός: 8970

SF23080A2083HBL PDF

SF23080A2083HBL

Τιμή χωρίς ΦΠΑ:  16.52 €
Αξία ΦΠΑ:  3.96 €
Τελική με ΦΠΑ:  20.48 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer SUNON
Fan type AC
Fan kind axial
Supply voltage 230V AC
Fan dimensions 80x80x38mm
Power consumption 14W
Rated current 70mA
Fans efficiency 40.7 (±7%)m3/h
Noise level 32dBA
Bearing type ball bearing
Rotational rate/speed 2400rpm
Weight 340g
Current and power consumption tolerance 15%
Frequency 50Hz
Min. insulation resistance 500MΩ
Fan material thermoplastic
Enclosure material aluminium
Insulation class B
Operating temperature 10...70°C
Leads 2 leads
Static pressure 3.3mm H2O
Flammability rating UL94V-0
Cable length 330mm
Wire size 24AWG

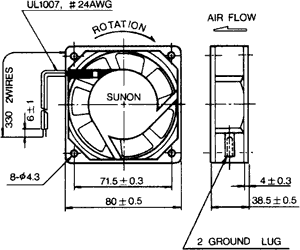

Dimensions  VIEW

Διαθεσιμότητα: Με παραγγελία
