Fan AC - Fan 80x80x25;slide bearing;AC230V;32,30m3/h;31dBA

Prod code: 8973

SF23080AT2082HS PDF

SF23080AT2082HS

Price:  12.18 €
VAT:  2.92 €
Final price with tax:  15.10 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer SUNON
Fan type AC
Fan kind axial
Supply voltage 230V AC
Fan dimensions 80x80x25mm
Power consumption 14W
Rated current 70mA
Fans efficiency 28.9 (±5%)m3/h
Noise level 29dBA
Bearing type slide bearing
Rotational rate/speed 2300rpm
Weight 260g
Current and power consumption tolerance 15%
Frequency 50Hz
Min. insulation resistance 500MÙ
Fan material thermoplastic
Enclosure material aluminium
Insulation class B
Operating temperature 10...70°C
Leads 2 leads
Static pressure 3.05mm H2O
Flammability rating UL94V-0
Cable length 330mm
Wire size 24AWG

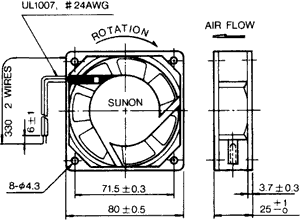

Dimensions  VIEW

Availability: With order
