Αισθητήριο Θερμοκρασίας - Connector AC supply, IEC 60320, 6200, C14 (E),1x fuse, socket

Κωδικός: 19166

6200.2100 PDF

6200.2100

Τιμή χωρίς ΦΠΑ:  2.89 €
Αξία ΦΠΑ:  0.69 €
Τελική με ΦΠΑ:  3.58 €
Ποσότητα:
* Αποστολή σε 2-5 εργάσιμες ημέρες.
Specifications
Manufacturer SCHURTER
Connector type AC supply
Standard IEC 60320
Connector series 6200
Connector socket
Connector type male
Electrical mounting soldering
Mechanical mounting flange (2 holes), for panel mounting
Rated current 10A
Rated voltage 250V AC
Fuse size 5x20mm

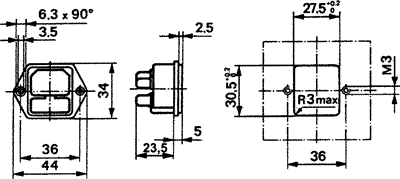

Dimensions  VIEW

Connector variant:
  • C14 (E)
  • 1x fuse
Διαθεσιμότητα: Με παραγγελία
